15.6 Inch LVDS TFT display with 1200:1 Contrast Ratio and 1920*1080 Resolution
Product Description:
HC156IV60061-N88, as an all-in-one embedded solution, comes with an IPS panel and a resolution of 1920*1080 pixels, being a popular TFT LCD display on the market. With a bright 600nits backlight and a high contrast ratio of 1200:1, this display with an outline dimension of 360.1mm*212.55mm*6.05mm offers great visibility even in sunlight, and delivers excellent color reproduction and image consistency. The display area is 344.16mm*193.59mm that can be viewed from the angle of 89/89/89/89(L/R/T/B). With an interface of 40pin LVDS, this display can be connected to central information display(CID), entertainment media, navigator, headrest display, etc. In addition, the HC156IV60061-N88 can operate reliably across a broad spectrum of temperatures from -20℃ to 80℃, reducing the risk of malfunction or failure in varying environments.
General Specification:
| P/N | HC156IV60061-N88 |
| Size | 15.6inch |
| Display type | Transmissive |
| Resolution | 1920*1080 |
| Outline Dimension(mm) | 360.1(W )*212.55(H)*6.05(T)mm |
| Active Area(mm) | 344.16(W)*193.59(H)mm |
| Brightness(cd/m²) | 600 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 40pinLVDS |
| Operation Temperature | -20~80℃ |
| Storge Temperature | -30~85℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1200 |
| Application | Central information display(CID), entertainment media, navigator, headrest display |

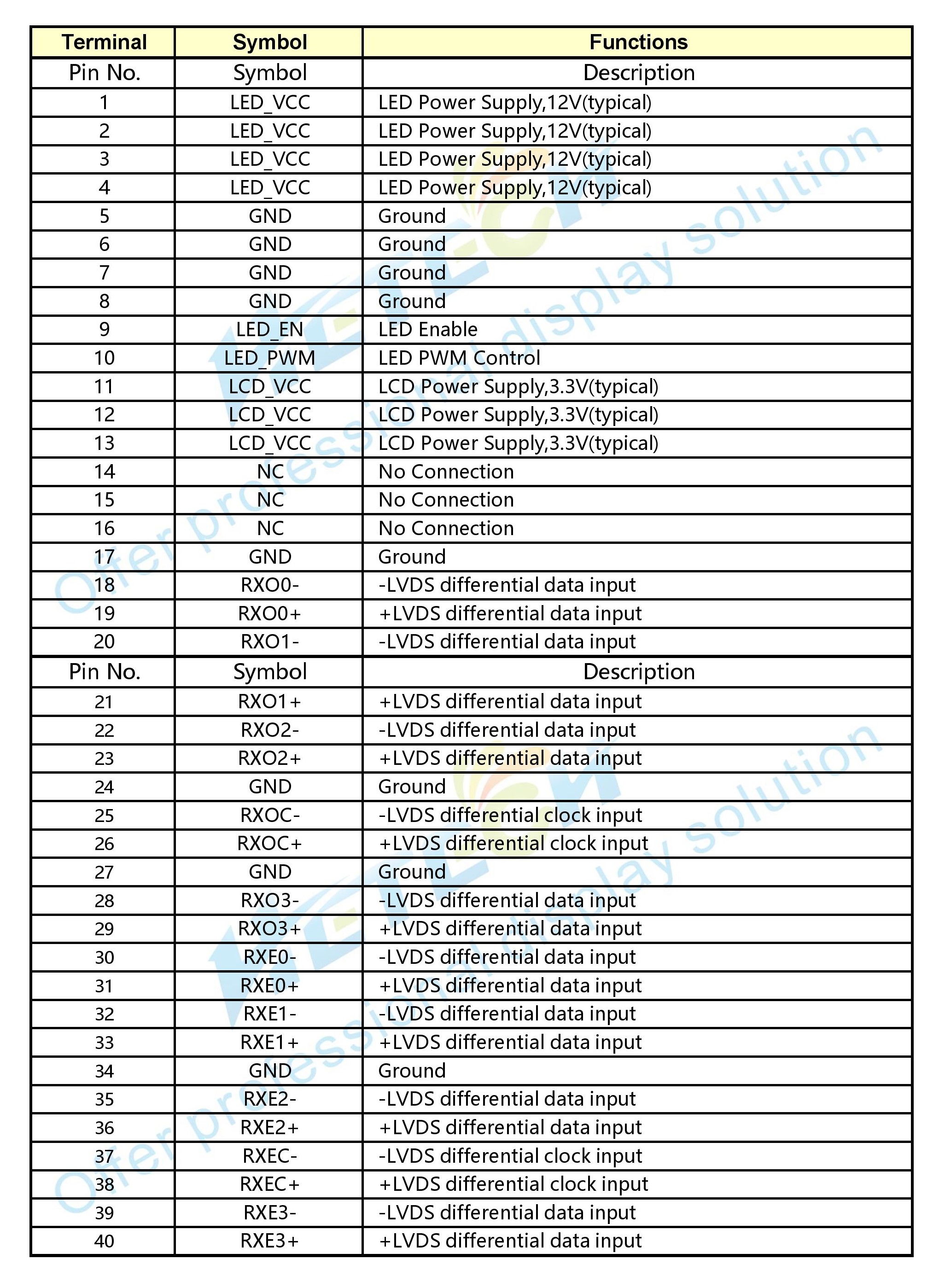

Pin assignment:

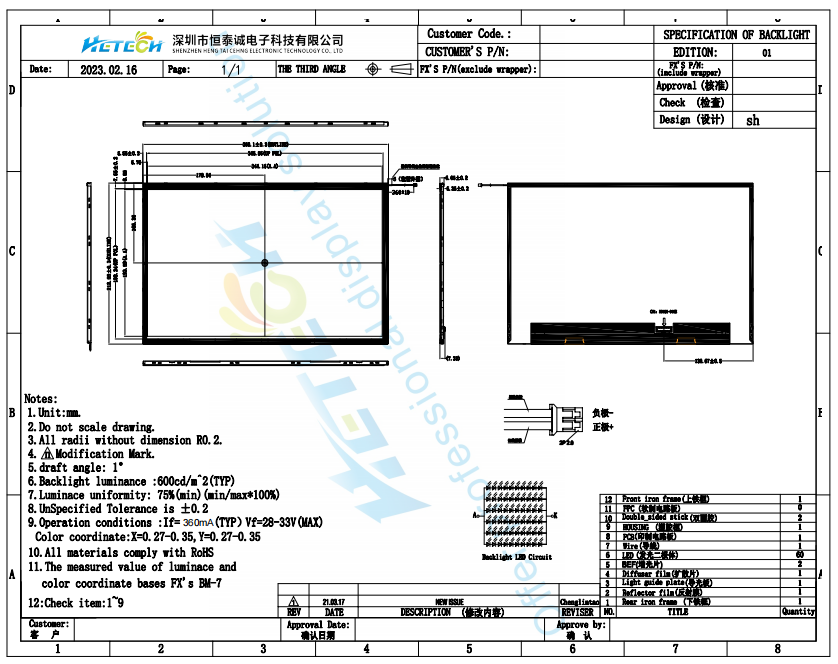

Product drawings:
15.6-inch lcd display series:
| 15.6-inch LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 15.6" | HC156IV30030-C60 | IPS | 1920*1080 | 350.16*216.0*3.05mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 2 | 15.6" | HC156IV30030-C60V01 | IPS | 1920*1080 | 359.5*223.75*3.0mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | -20~70℃ | -20℃~70℃ |
| 3 | 15.6" | HC156IV30030-C60V03 | IPS | 1920*1080 | 350.7*215.67*2.8mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 4 | 15.6" | HC156IV50046-C60V04 | IPS | 1920*1080 | 359.94*222.32*5.5mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | -10℃~60℃ | -20℃~65℃ |
| 5 | 15.6" | HC156IV50032-C60V06 | IPS | 1920*1080 | 359.5*206.5*3.2mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | 0℃~50℃ | -20℃~60℃ |
| 6 | 15.6" | HC156IV30030-C60V07 | IPS | 1920*1080 | 350.7*215.67*2.6mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 7 | 15.6" | HC156IV60061-N88 | IPS | 1024*600 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 600 | -20~80℃ | -30~85℃ |
| 8 | 15.6" | HC156IVA0073-N88H | IPS | 1920*1080 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
