15.6 Inch TFT color LCD module with 1920*1080 Resolution and 500nits Brightness
Product Description:
HC156IV50046-C60V04, as a popular TFT LCD display, has a 30pin EDP interface which offers advantages such as power efficiency, cost-effectiveness and reliable and high-speed data transmission. This 15.6-inch IPS display has a resolution of 1920*1080 pixels, enabling images presented on the screen to have smoother gradients, finer details and crisper edges. The high contrast ratio of 1000:1 and brightness of 500nits lead to a more vivid and realistic image with enhanced color depth and vibrancy for a better overall user experience. Possessing an active area of 344.16mm*193.59mm and an outline dimension of 359.94mm*222.32mm*5.5mm, the HC156IV50046-C60V04 can be applied to business travel monitors, mobile phone display extension, etc.
General Specification:
| P/N | HC156IV50046-C60V04 |
| Size | 15.6inch |
| Display type | Transmissive |
| Resolution | 1920*1080 |
| Outline Dimension(mm) | 359.94(W )*212.3(H)*4.6(T)mm |
| Active Area(mm) | 344.16(W)*193.59(H)mm |
| Brightness(cd/m²) | 500 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 30pinEDP |
| Operation Temperature | -10~60℃ |
| Storge Temperature | -20~65℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | Efficiency, cost-effectiveness and reliable and high-speed data transmission |

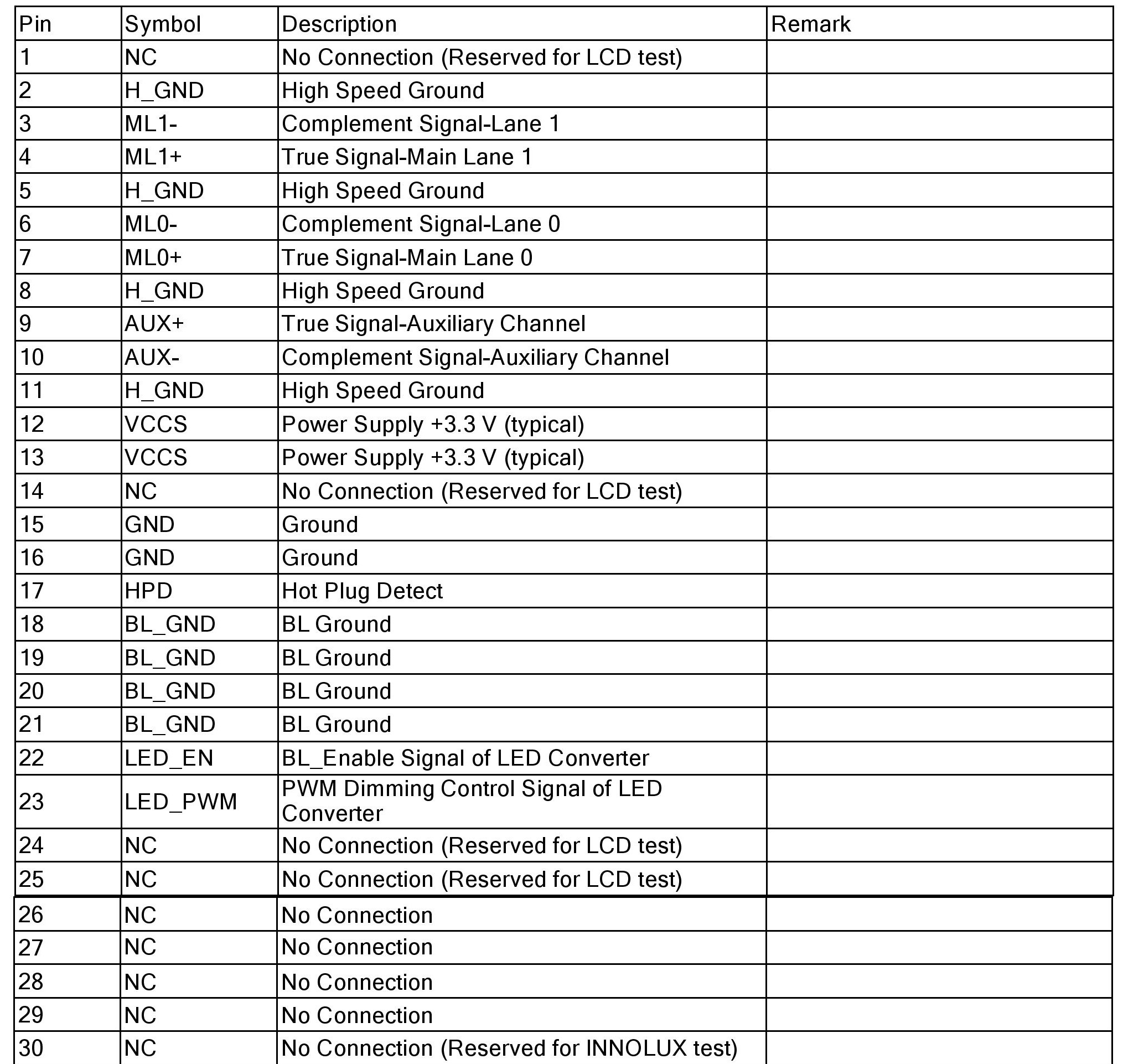

Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
| Voltage for LED backlight | Vf | 26 | 30 | 32 | V |
| Current for LED backlight | If | - | 390 | 480 | mA |
| LED life time | - | 20000 | - | - | hrs |

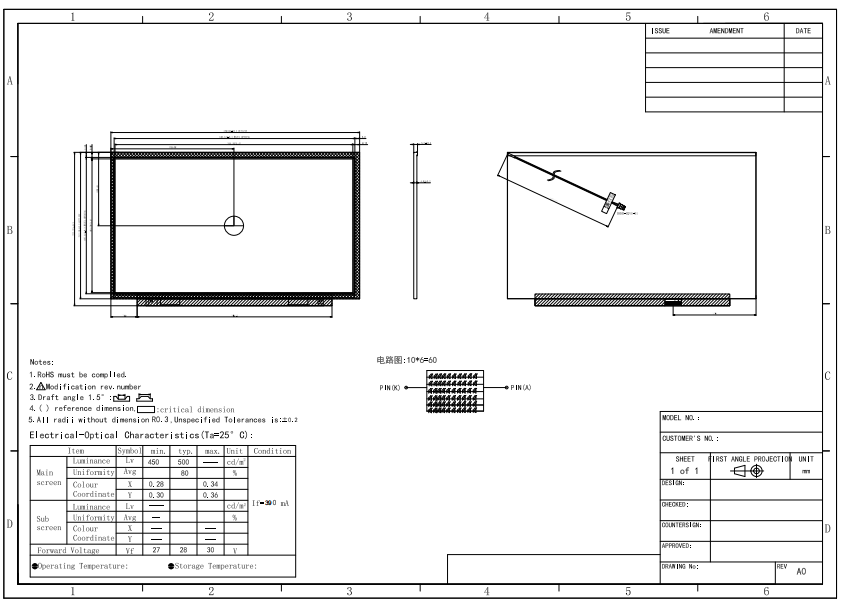

Product drawings:
15.6-inch lcd display series:
| 15.6-inch LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 15.6" | HC156IV30030-C60 | IPS | 1920*1080 | 350.16*216.0*3.05mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 2 | 15.6" | HC156IV30030-C60V01 | IPS | 1920*1080 | 359.5*223.75*3.0mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | -20~70℃ | -20℃~70℃ |
| 3 | 15.6" | HC156IV30030-C60V03 | IPS | 1920*1080 | 350.7*215.67*2.8mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 4 | 15.6" | HC156IV50046-C60V04 | IPS | 1920*1080 | 359.94*222.32*5.5mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | -10℃~60℃ | -20℃~65℃ |
| 5 | 15.6" | HC156IV50032-C60V06 | IPS | 1920*1080 | 359.5*206.5*3.2mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | 0℃~50℃ | -20℃~60℃ |
| 6 | 15.6" | HC156IV30030-C60V07 | IPS | 1920*1080 | 350.7*215.67*2.6mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 7 | 15.6" | HC156IV60061-N88 | IPS | 1024*600 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 600 | -20~80℃ | -30~85℃ |
| 8 | 15.6" | HC156IVA0073-N88H | IPS | 1920*1080 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30~85℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
