15.6 Inch TFT LCD modules for Portable Monitors with 30pin EDP Interface
Product Description:
HC156IV30030-C60V03 is a 15.6-inch display that supports 30pin EDP interface, increasingly being popular for TFT display requiring high-speed data transmission. This display with IPS display mode features a resolution of 1920*1080 pixels and a brightness of 300nits, providing users with high-definition images and a wide viewing angle of 89/89/89/89(L/R/T/B). Embedded in a compact frame of 350.7mm*215.67mm*2.8mm, the HC156IV30030-C60V03 has a rich active area of 344.16mm*193.59mm, showing excellent images. And because of its high contrast ratio of 1000:1, this display shows richer colors and clearer images. In terms of application fields, the HC156IV30030-C60V03 can be used in portable monitor, digital frame etc.
General Specification:
| P/N | HC156IV30030-C60V03 |
| Size | 15.6inch |
| Display type | Transmissive |
| Resolution | 1920*1080 |
| Outline Dimension(mm) | 350.7(W )*204.9(H)*2.8(T)mm |
| Active Area(mm) | 344.16(W)*193.59(H)mm |
| Brightness(cd/m²) | 300 |
| Viewing Angle(L/R/T/B) | 89/89/89/89 |
| Interface | 30pinEDP |
| Operation Temperature | 0~50℃ |
| Storge Temperature | -20~60℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 1000 |
| Application | Portable monitor, digital frame |

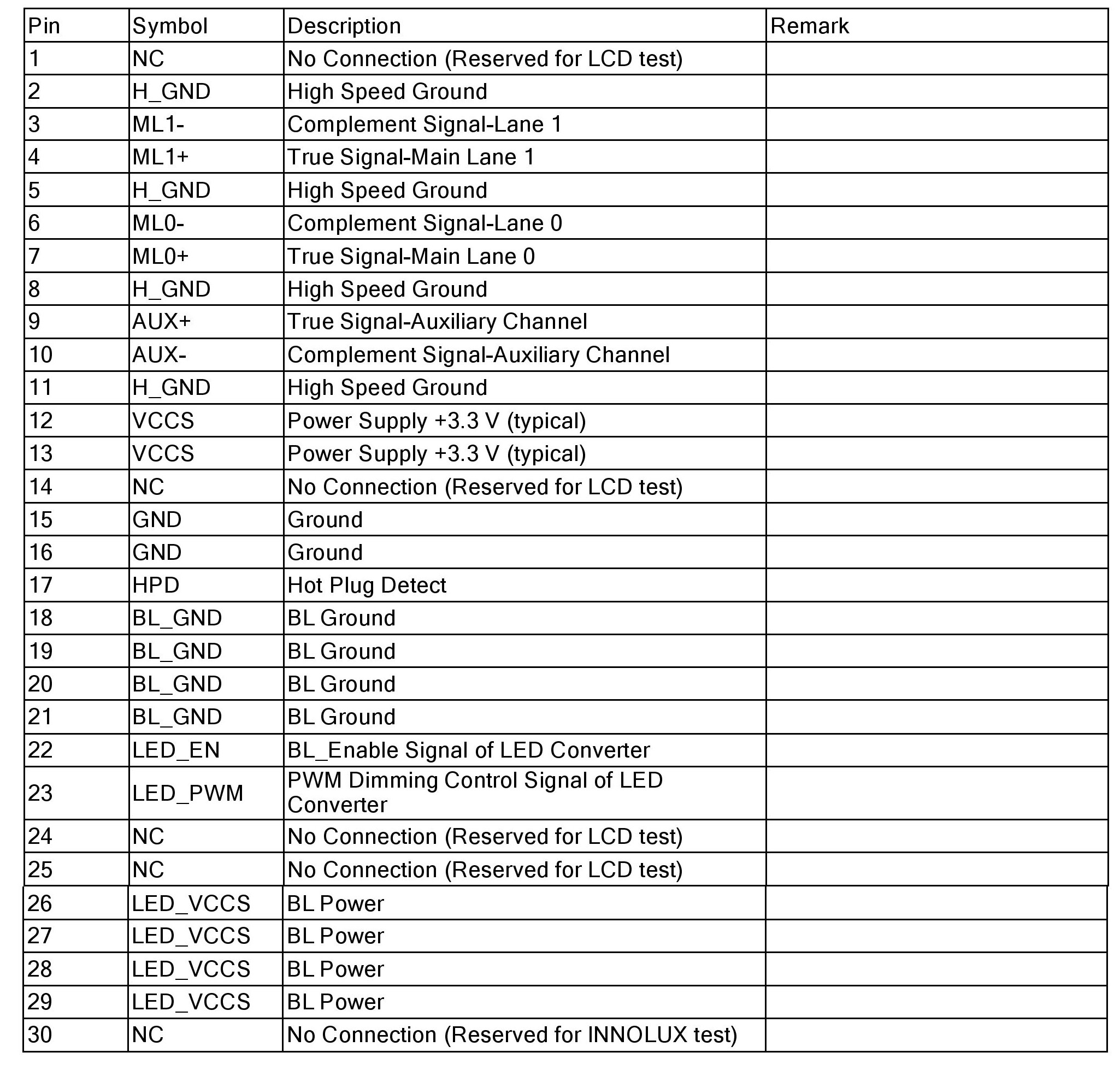

Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
| Voltage for LED backlight | Vf | 26 | 30 | 32 | V |
| Current for LED backlight | If | - | 120 | - | mA |
| LED life time | - | 15000 | - | - | hrs |

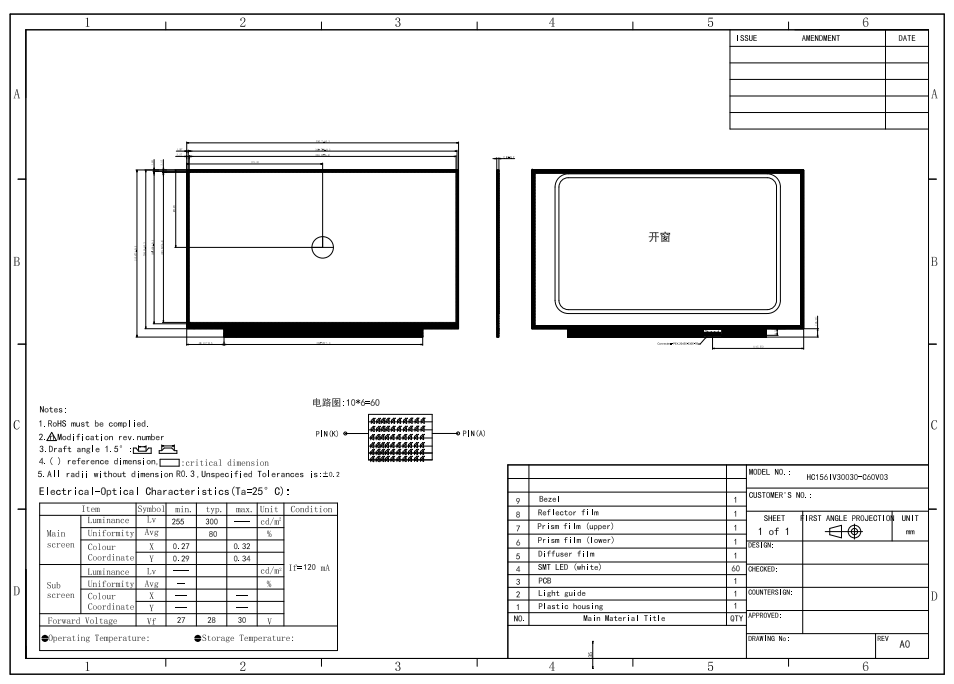

Product drawings:
15.6-inch lcd display series:
| 15.6-inch LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 15.6" | HC156IV30030-C60 | IPS | 1920*1080 | 350.16*216.0*3.05mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 2 | 15.6" | HC156IV30030-C60V01 | IPS | 1920*1080 | 359.5*223.75*3.0mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | -20~70℃ | -20℃~70℃ |
| 3 | 15.6" | HC156IV30030-C60V03 | IPS | 1920*1080 | 350.7*215.67*2.8mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 4 | 15.6" | HC156IV50046-C60V04 | IPS | 1920*1080 | 359.94*222.32*5.5mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | -10℃~60℃ | -20℃~65℃ |
| 5 | 15.6" | HC156IV50032-C60V06 | IPS | 1920*1080 | 359.5*206.5*3.2mm | 344.16*193.59mm | 30pin EDP | 1000 | 500 | 0℃~50℃ | -20℃~60℃ |
| 6 | 15.6" | HC156IV30030-C60V07 | IPS | 1920*1080 | 350.7*215.67*2.6mm | 344.16*193.59mm | 30pin EDP | 1000 | 300 | 0℃~50℃ | -20℃~60℃ |
| 7 | 15.6" | HC156IV60061-N88 | IPS | 1024*600 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 600 | -20~80℃ | -30~85℃ |
| 8 | 15.6" | HC156IVA0073-N88H | IPS | 1920*1080 | 360.1*212.55*6.05mm | 344.16*193.59mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30~85℃ |

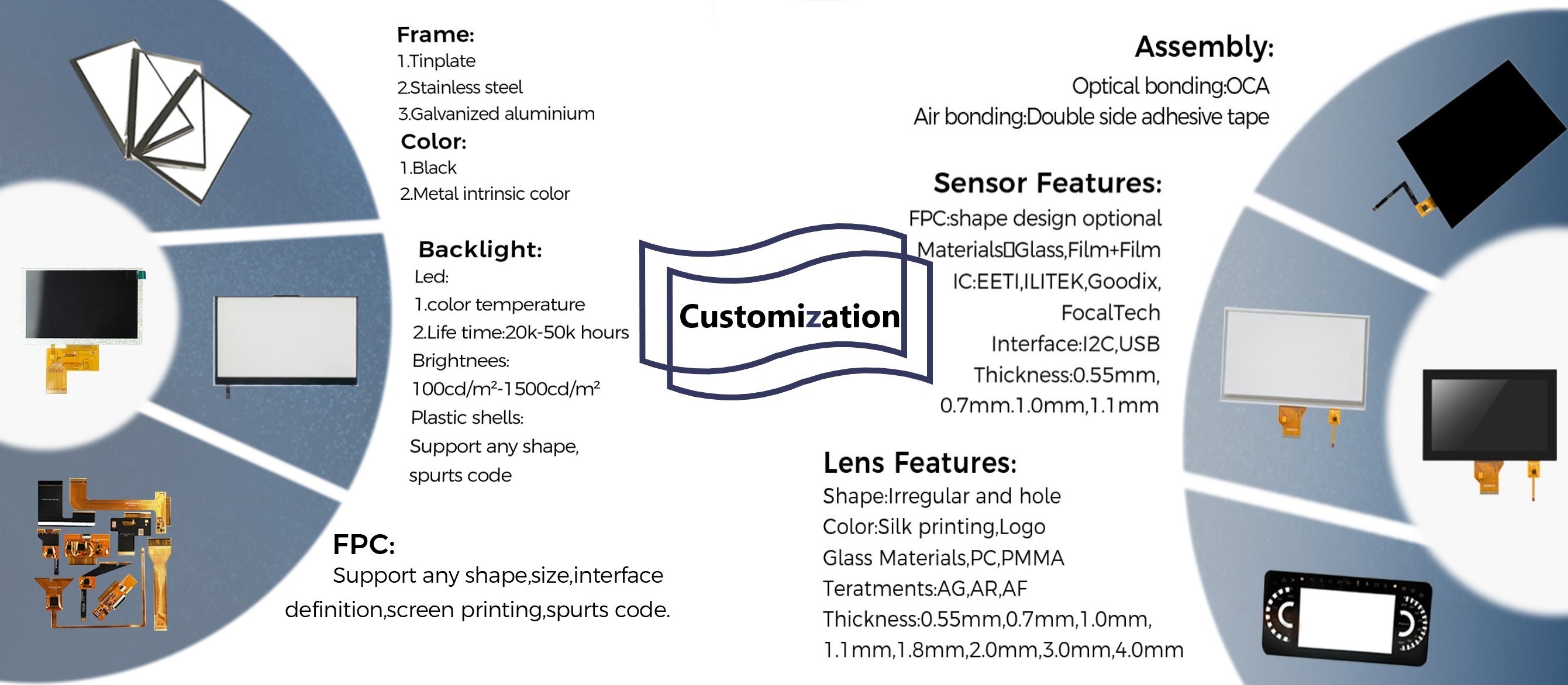

Customization:
