High Contrast 3.5 Inch TFT LCD Display Module 640*480 Resolution

  • 1
  • 2
  • 3

Brand Name : HETECH

Model Number : HC035IF30032-C37

Certification : ISO9001,ISO14001,ISO13485,IATF16949

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T

Supply Ability : 50K/month

Delivery Time : 4-6weeks

P/N : HC035IF30032-C37

Size : 3.45"(IPS)

Display type : (IPS)

Resolution : 640*480

Outline dimension : 76.7(W )*63.7(H)*3.2(T)mm

Active area : 70.08(W)*52.56(H)mm

Brightness : 350cd/m2

Interface : 54pinRGB

Viewing angle : 85/85/85/85

Operation Temp. : -20~70℃

Storage Temp. : -30~80℃

Contrast ratio : 800

Aspect ratio : 4:3

Application : retro handheld game console, portable game capture box, automatic urine analyzer and other equipment.

Contact Now

3.5 Inch TFT LCD Display Module with 640*480 Resolution and 800:1 Contrast Ratio

Product Description:

HC035IF30032-C37 is a 3.5-inch IPS display module with the outline dimension of 76.70mm*63.70mm*3.20mm. It has a resolution of 640*480 pixels and a high contrast ratio of 800:1, which can display a gorgeous image. The brightness of 350nits can ensure that the screen is not dazzling when working indoors, giving users a comfortable visual experience. Possessing a wide viewing angle of 85/85/85/85(L/R/T/B) and an active area of 70.08mm*52.56mm, this module provides users with a clear view from multiple angles. Additionally, this 3.5-inch module has a 54pin RGB interface design and can still show the best display effect under the temperatures from -20℃ to 70℃. Its superior performance allows it to be widely used in retro handheld game console, portable game capture box, automatic urine analyzer and other equipment.
General Specification:

P/N
HC035IF30032-C37
Size 3.45inch
Display type
Normally Black/Transmissive
Resolution 640*480
Outline Dimension(mm) 76.7(W )*63.7(H)*3.2(T)mm
Active Area(mm) 70.08(W)*52.56(H)mm
Brightness(cd/m²) 350
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 54pinRGB
Operation Temperature -20~70℃
Storge Temperature -30~80℃
Aspect ratio 4:3
Contrast ratio 800
Application retro handheld game console, portable game capture box, automatic urine analyzer and other equipment.

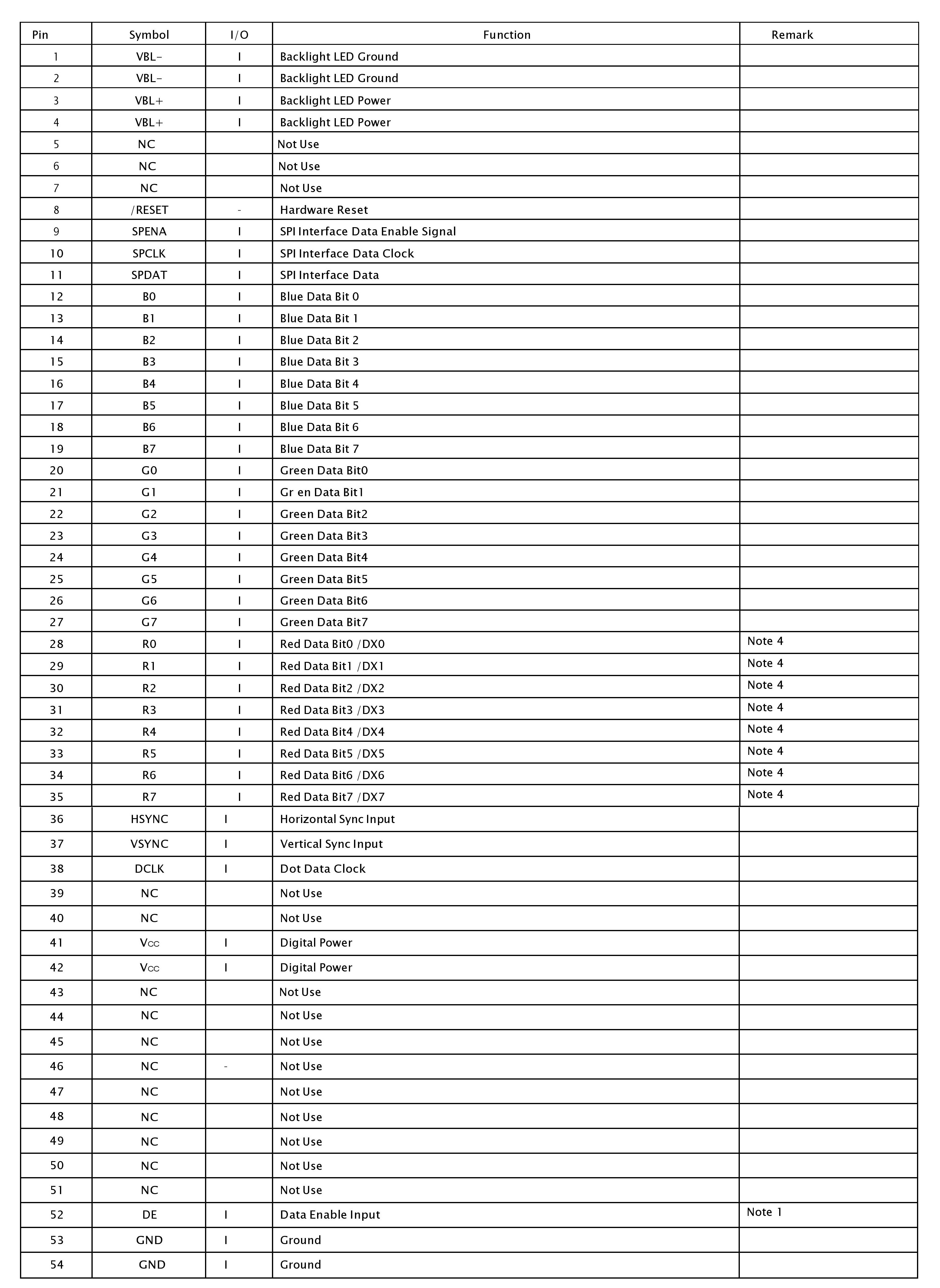

Pin assignment:

High Contrast 3.5 Inch TFT LCD Display Module 640*480 Resolution

Product drawings:

High Contrast 3.5 Inch TFT LCD Display Module 640*480 Resolution
Customization:


High Contrast 3.5 Inch TFT LCD Display Module 640*480 Resolution

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
