320*240 Resolution 3.5 Inch TFT LCD Display With IPS Technology Energy Saving

3.5 inch TFT LCD display with 800:1 contrast ratio and 54pinRGB interface

Product Description:

HC035IB30033-A88 is a 3.5-inch TFT LCD display that adopts the IPS technology. This display's horizontal and vertical viewing angles are both 80 degrees, ensuring that users can obtain better image quality and visual effects when viewing from different angles. With 320*240 pixels, 300nits brightness and 800:1 contrast ratio, this 3.5-inch display can ensure picture quality while having good energy-saving effects. This display is embedded in an outer frame with a size of 76.90mm*63.90mm*3.26mm, providing a rich active viewing area of 70.08mm*52.56mm. Its 54Pin RGB interface and operating temperature of -20°C to 70°C allow this display to be well assembled with digital satellite measuring instruments, electric bicycles, multi-functional insulation resistance testers and other equipment in many fields, and exert its powerful function.

General Specification:

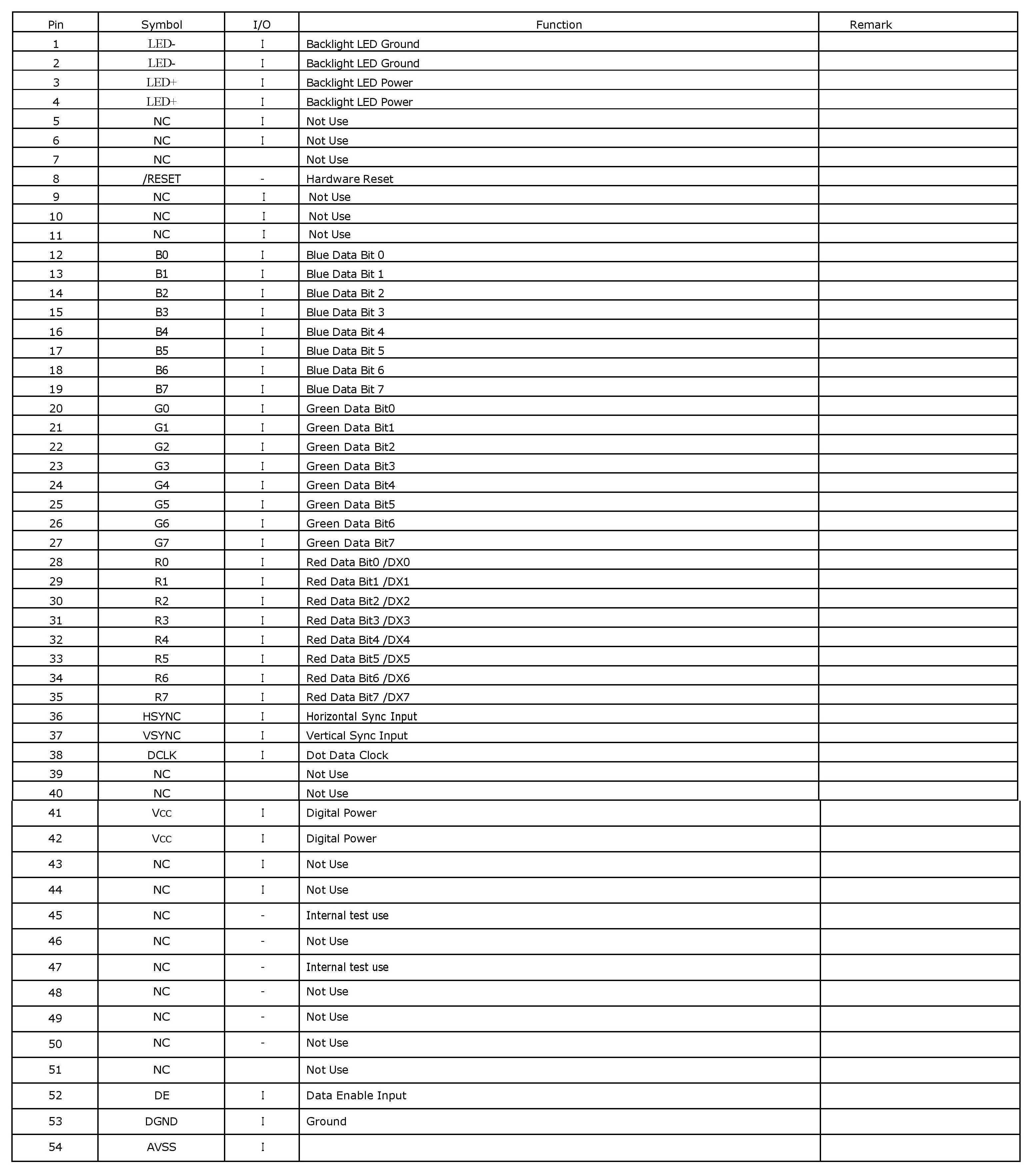

Pin assignment:

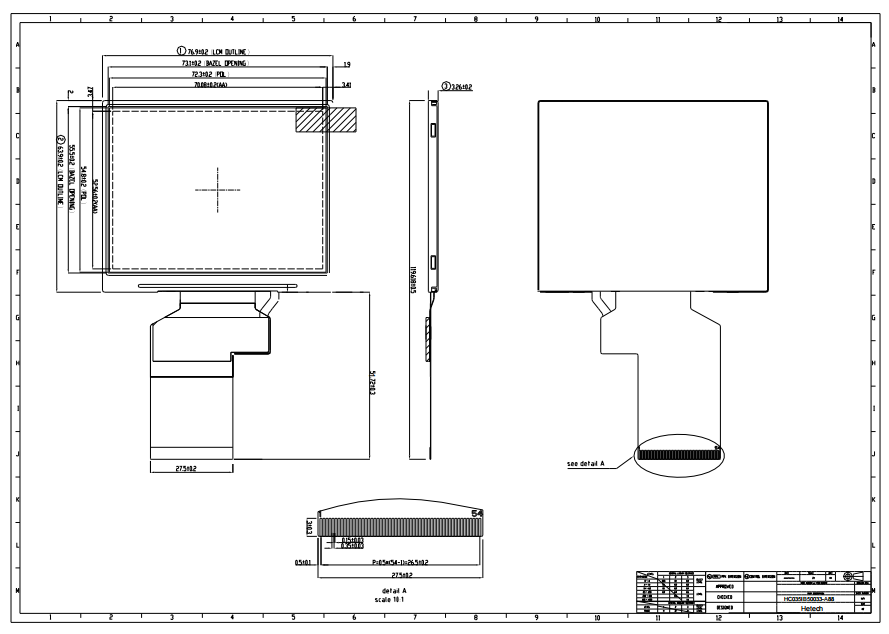

Product drawings:

Customization:



FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
