INNOLUX TFT LCD Display AT070TN94 7-inch with 800*480 resolution
Product Description:
INNOLUX AT070TN94 is a 7-inch display with TN technology that can operate within the temperature range of -30℃ to 85℃, embodying its more superior performance than common displays. With a resolution of 800*480 pixels, this display presents sharp and delicate images. It also has a brightness of 500 nits and a contrast ratio of 500:1 to offer good visibility in moderately lit environments and clear distinction between dark and light areas on the screen. And meanwhile, the 50pin RGB interface of this display allows for precise control over each color component, resulting in accurate and vibrant color reproduction. In terms of applications, the AT070TN94 with its outline dimension of 164.9mm*100mm*5.7mm is suitable for handheld terminals, testing machine, electric bicycle, office printer and other electronic devices.
General Specification:
| P/N | AT070TN94 |
| Size | 7inch |
| Display type | Normally White, Transmissive |
| Resolution | 800*480 |
| Outline Dimension(mm) | 164.9(W )*100(H)*6(T)mm |
| Active Area(mm) | 154.08(W)*85.92(H)mm |
| Brightness(cd/m²) | 400 |
| Viewing Angle(L/R/T/B) | 70/70/50/70 |
| Interface | 50pinRGB |
| Operation Temperature | -30~85℃ |
| Storge Temperature | -30~85℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 500 |
| Application | Handheld terminals, testing machine, electric bicycle, office printer |

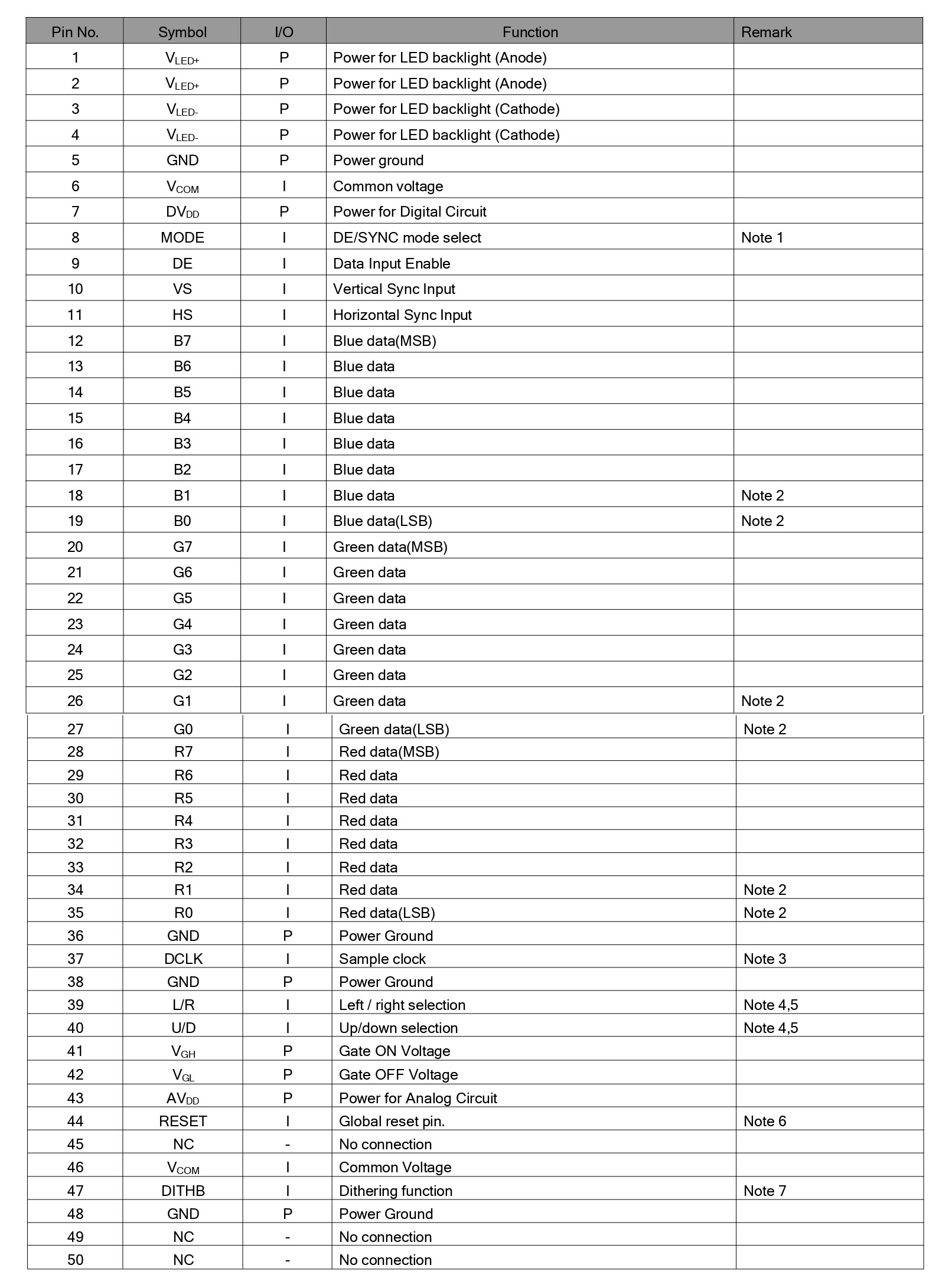

Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
| Voltage for LED backlight | Vf | 8.4 | 9.3 | 10.2 | V |
| Current for LED backlight | If | 170 | 180 | 200 | mA |
| LED life time | - | 20000 | - | - | hrs |
Product drawings:
Certificate:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
