250nits Backlight 10.1 Inch TFT LCD Color Display With 1024*600 Resolution

  • 1
  • 2
  • 3

Brand Name : HETECH

Model Number : HC101IK25045-C36

Certification : ISO9001,ISO14001,ISO13485,IATF16949

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T

Supply Ability : 50K/month

Delivery Time : 4-6weeks

P/N : HC101IK25045-C36

Size : 10.1"(IPS)

Display type : (IPS)

Resolution : 1024*600

Outline dimension : 235(W )*143(H)*4.5(T)mm

Active area : 222.72(W)*125.28(H)mm

Brightness : 250cd/m2

Interface : 40pinLVDS

Viewing angle : 80/80/80/80

Operation Temp. : -20~70

Storage Temp. : -30~80

Contrast ratio : 800

Aspect rati16:9o : 16:9

Application : Smart switch and hematology analyzer

Contact Now

10.1 Inch TFT LCD color monitor with 1024*600 Resolution and 250nits Backlight

Product Description:

HC101IK25045-C36 with outline dimension of 235.00mm*143.00mm*4.50mm boasts exceptional power efficiency, making it ideal for a wide range of applications, such as particularly smart switch and hematology analyzer. The 1024*600 pixels resolution and 250nits backlight are designed for devices used indoor and these two features ensure adequate clarity for the images. At the same time, its 800:1 contrast ratio ensures the vividness of the image colors. By utilizing the advanced 40pin LVDS interface and IPS technique, the HC101IK25045-C36 can consume minimum power at the operation temperature from -20℃ to 70℃ while delivering excellent performance. In a word, as a powerful combination of technology and practical design, the HC101IK25045-C36 has its competitive power in the market.


General Specification:

P/N HC101IK25045-C36
Size 10.1inch
Display type
TFT
Resolution 1024*600
Outline Dimension(mm) 235(W )*143(H)*4.5(T)mm
Active Area(mm) 222.72(W)*125.28(H)mm
Brightness(cd/m²) 250
Viewing Angle(L/R/T/B) 80/80/80/80
Interface 40pinLVDS
Operation Temperature -20~70
Storge Temperature -30~80
Aspect ratio 16:9
Contrast ratio 800
Application Smart switch and hematology analyzer

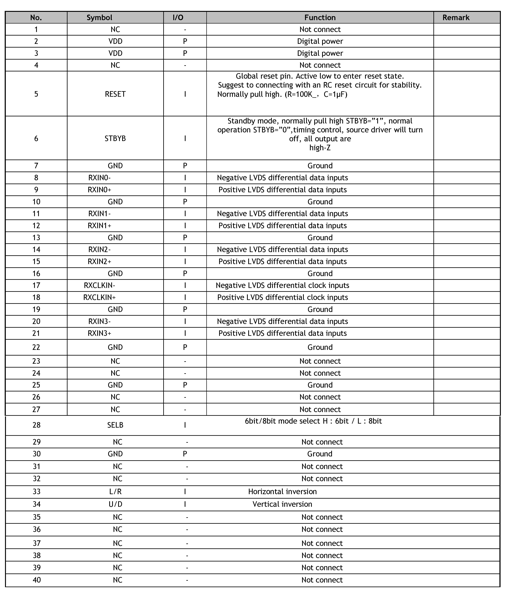

Pin assignment:

250nits Backlight 10.1 Inch TFT LCD Color Display With 1024*600 Resolution

Backlight Driving Conditions:

Item Symbol MIN TYP MAX UNIT
Voltage for LED backlight
 Vf 18 19.8 21 V
Current for LED backlight
 If - 140 - mA
LED life time
 - 20000 - - hrs

Product drawings:

250nits Backlight 10.1 Inch TFT LCD Color Display With 1024*600 Resolution

10.1-inch lcd display series:

10.1-inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No. Size Part No. LCD type Resolution Outline dimension Active area Interface Contrast ratio Brightness Operation temperature Storage temperature
1 10.1" HC101IK20050-A79 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 40pinLVDS 1000 200 -20~70℃ -30~80℃
2 10.1" HC101IK25050-D59 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 20pinLVDS 1000 250 -20~70℃ -30~80℃
3 10.1" HC101IK35050-A79 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 50pinRGB 1000 350 -20~70℃ -30~80℃
4 10.1" HC101IK50050-A79 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 50pinRGB 1000 500 -20~70℃ -30~80℃
5 10.1" HC101IKA0050-A79 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 50pinRGB 1000 1000 -20~70℃ -30~80℃
6 10.1" HC101IKA0050-F45 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 50pinRGB 1000 1000 -20~70℃ -30~80℃
7 10.1" HC101IK50050-A86 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 40pinLVDS 1000 500 -20~70℃ -30~80℃
8 10.1" HC101IK50050-A86H IPS 1024*600 235*143*5.0mm 222.72*125.28mm 40pinLVDS 1000 500 -30~80℃ -40~85℃
9 10.1" HC101IK25045-C36 IPS 1024*600 235*143*4.5mm 222.72*125.28mm 40pinLVDS 1000 250 -20~70℃ -30~80℃
10 10.1" HC101IK50045-C36 IPS 1024*600 235*143*4.5mm 222.72*125.28mm 40pinLVDS 800 500 -20~70℃ -30~80℃
11 10.1" HC101IK50045-B74 IPS 1024*600 235*143*4.5mm 222.72*125.28mm 60pinLVDS 1000 500 -20~70℃ -30~80℃
12 10.1" HC101IK65044-E16 IPS 1024*600 235*143*4.5mm 222.72*125.28mm 60pinLVDS 1000 650 -20~70℃ -30~80℃
13 10.1" HC101IK50050-A85 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 40pinLVDS 800 500 -20~70℃ -30~80℃
14 10.1" HC101IUA0046-F50 IPS 1280*720 234.96*142.96*4.6mm 224.64*126.36mm 50pinLVDS 1000 1000 -20~70℃ -30~80℃
15 10.1" HC101IU80046-F50V.C IPS 1280*720 252.00*158.00*7.70mm 224.64*126.36mm 50pinLVDS 1000 700 -20~70℃ -30~80℃
16 10.1" HC101I35025NB-V06 IPS 1280*800
229.46*149.10*2.5mm
216.96*135.6mm 40pinLVDS 800 350 -20~70℃ -30~80℃
17 10.1" HC101IP80025-A44 IPS 1280*800 229.46*149.10*2.51mm 216.96*135.6mm 40pinLVDS 800 800 -20~70℃ -30~80℃
18 10.1" HC101IP30025-75V02 IPS 1280*800 229.46*149.10*2.51mm 216.96*135.6mm 40pinLVDS 800 300 -20~70℃ -30~80℃
19 10.1" HC101IPA0050-A75-1 IPS 1280*800 229.46*149.10*4.70mm 216.96*135.6mm 40pinLVDS 800 1000 -20~70℃ -30~80℃
20 10.1" HC101IP35048-A74V01 IPS 1280*800 229.46*149.10*4.8mm 216.96*135.6mm 40pinLVDS 800 350 -20~70℃ -30~80℃
21 10.1" HC101IP65025-A16V01 IPS 1280*800 229.46*149.10*2.8mm 216.96*135.6mm 40pinLVDS 800 650 -20~70℃ -30~80℃
22 10.1" HC101IP65025-A16 IPS 1280*800 229.06*148.70*2.80mm 216.96*135.60mm 40pinLVDS 800 650 -20~70℃ -30~80℃
23 10.1" HC101IPA0025-A16 IPS 1280*800 229.06*148.70*2.51mm 216.96*135.60mm 40pinLVDS 800 1000 -20~70℃ -30~80℃
24 10.1" HC101IP65025-A16V.C IPS 1280*800 229.26*148.70*4.55mm 216.96*135.60mm 40pinLVDS 800 500 -20~70℃ -30~80℃
25 10.1" HC101IP65025-A17V01 IPS 1280*800 229.46*149.10*2.8mm 216.96*135.60mm 40pinLVDS 800 650 -20~70℃ -30~80℃
26 10.1" HC101IP80025-A46 IPS 1280*800 229.06*149.1*2.5mm 216.96*135.60mm 40pinLVDS 800 800 -20~70℃ -30~80℃
27 10.1" HC101IPA0047-F91V.C IPS 1280*800 232.45*152.60*6.75mm 216.96*135.60mm 40pinLVDS 800 800 -20~70℃ -30~80℃
28 10.1" HC101IPA0048-A74V01 IPS 1280*800 229.46*149.10*4.70mm 216.96*135.60mm 40pinLVDS 800 1000 -20~70℃ -30~80℃
29 10.1" HC101IP30025-C51V01 IPS 1280*800 229.46*149.10*4.70mm 216.96*135.60mm 40pinLVDS 800 350 -20~70℃ -30~80℃
30 10.1" HC101IPA0048-A74 IPS 1280*800 229.46*149.10*4.8mm 216.96*135.60mm 40pinLVDS 800 1000 -20~70℃ -30~80℃
31 10.1" HC101TK50050-D90 IPS 1024*600 235*143*5.0mm 222.72*125.28mm 40pinLVDS 800 500 -20~70℃ -30~80℃
32 10.1" HC101IY23026-B65 IPS 800*1280 143*228.6*2.5mm 135.36*216.58mm 40pinMIPI 1000 230 -10~50℃ -20~60℃
33 10.1" HC101IY30025-D81 IPS 800*1280 143*228.6*2.5mm 135.36*216.58mm 40pinMIPI 1000 300 -10~50℃ -20~60℃
34 10.1" HC101IY55025-D81 IPS 800*1280 143.00*228.60*2.50mm 135.36*216.58mm 40pinMIPI 1000 550 -20~60℃ -20~70℃
35 10.1" HC101IY40026-D25 IPS 800*1280 143.00*228.60*2.60mm 135.36*216.58mm 31pinMIPI 1000 400 -20~70℃ -20~70℃
36 10.1" HC101IY40026-D25V.C IPS 800*1280 149.04*229.40*4.45mm 135.36*216.58mm 31pinMIPI 1000 400 -20~70℃ -20~70℃
37 10.1" HC101IUA0059-F51 IPS 1280*720 234.9*143*5.9mm 224.64*126.36mm 50pinLVDS 1000 1000 -30~85℃ -30~85℃
38 10.1" HC101IU40045-G03 IPS 1280*720 234.9*143*4.5mm 224.64*126.36mm 60pinLVDS 1000 400 -30~85℃ -30~85℃
39 10.1" HC101IX25064-F13 IPS 440*1920 64.98*266.39*4.60mm 57.95*252.86mm 40pinMIPI 1000 250 -20~70℃ -30~80℃
40 10.1" HC101IP80067-C35V.C IPS 1280*800 248.77*167.44*6.8mm 216.96*135.60mm 40pinLVDS 800 800 -20~70℃ -30~80℃
41 10.1" HC101IY30025-D81V.C IPS 800*1280 164.43*254.40*4.58mm 135.36*216.58mm 40pinMIPI 1000 300 -20~70℃ -30~80℃
42 10.1" HC101IZ30026-92 V.C IPS 1200*1920 164.43*254.40*4.58mm 135.36*216.58mm 40pinMIPI 1000 280 -10~60℃ -10~60℃
43 10.1" HC101IZ30026-92V01 IPS 1200*1920 143*228.6*2.6mm 135.36*216.58mm 40pinMIPI 1000 300 -10~50℃ -10~60℃


Customization:

250nits Backlight 10.1 Inch TFT LCD Color Display With 1024*600 Resolution


FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
