Product Description:
HC090IKA0057-C16H adopts IPS technology, which expands the viewing angle of the display to 85/85/85/85(L/R/T/B). It is a 9-inch TFT LCD display with 1024*600 pixels resolution and 1000 nits high luminance, showing high-definition and vibrant display images to users, making content more visible and enjoyable in a variety of environments. In a compact frame of 211.10mm*126.50mm*5.70mm, this display provides a rich active area of 196.60mm*114.15mm, showing defined and detailed images with a contrast ratio of 800:1. And in an environment of -30℃ to 85℃, the display can still demonstrate its superior and reliable performance. Moreover, the HC090IKA0057-C16H has a 40pin LVDS interface, featuring low power consumption and high-speed data transmission capabilities, and is compatible with car bluetooth radio stereo.
General Specification:
| P/N | HC090IKA0057-C16H |
| Size | 9inch |
| Display type | Normally Black |
| Resolution | 1024*600 |
| Outline Dimension(mm) | 211.1(W )*126.5(H)*7.1(T)mm |
| Active Area(mm) | 196.608(W)*114.15(H)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 40pinLVDS |
| Operation Temperature | -30~85℃ |
| Storge Temperature | -30~85℃ |
| Aspect ratio | 16:9 |
| Contrast ratio | 800 |
| Application | Car bluetooth radio stereo |
Pin assignment:
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT |
| Voltage for LED backlight | Vf | - | 9.3 | - | V |
| Current for LED backlight | If | - | 550 | - | mA |
| LED life time | - | 20000 | - | - | hrs |

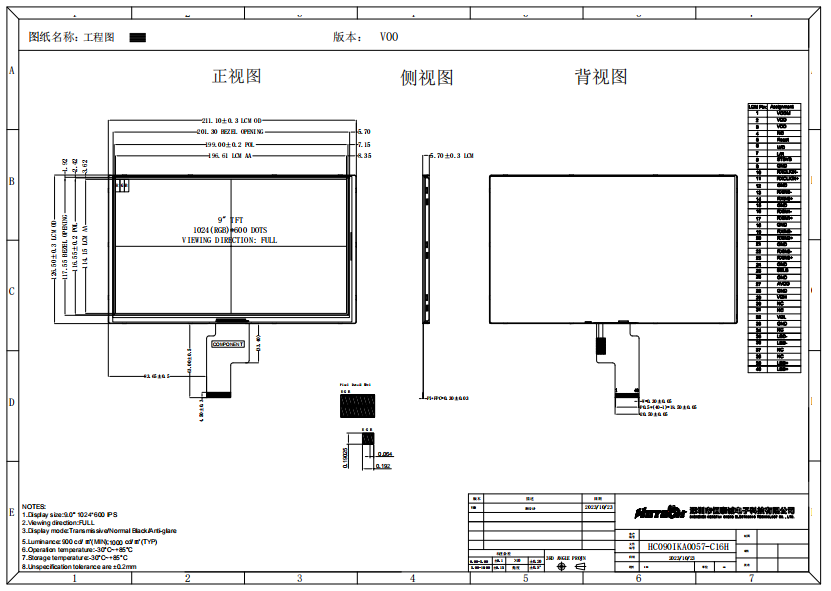

Product drawings:
9-inch lcd display series:
| 9-inch LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 9" | HC090IK50057-C16 | IPS | 1024*600 | 211.10*126.50*5.7mm | 196.61*114.15mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ |
| 2 | 9" | HC090TG25050-D80 | TN | 800*480 | 211.10*126.50*5.00mm | 198.00*111.7mm | 50pinRGB | 500 | 250 | -20~70℃ | -30~80℃ |
| 3 | 9" | HC090TG35050-D80V.1 | TN | 800*480 | 211.10*126.50*6.50mm | 198.00*111.7mm | 50pinRGB | 500 | 300 | -20~70℃ | -30~80℃ |
| 4 | 9" | HC090TGA0057-97 | TN | 800*480 | 211.10*126.50*5.7mm | 198.00*111.69mm | 50pinRGB | 500 | 1000 | -20~70℃ | -30~80℃ |
| 5 | 9" | HC090IK50057-C16V.C | IPS | 1024*600 | 211.10*126.50*7.10mm | 196.60*114.15mm | 40pinLVDS | 800 | 500 | -20~70℃ | -30~80℃ |
| 6 | 9" | HC090IKA0057-C16H | IPS | 1024*600 | 211.10*126.50*5.70mm | 196.60*114.15mm | 40pinLVDS | 800 | 1000 | -20~70℃ | -30~80℃ |
| 7 | 9" | HC090TG35050-D80 | TN | 800*480 | 211.10*126.50*5.00mm | 198.00*111.7mm | 50pinRGB | 500 | 350 | -20~70℃ | -30~80℃ |
| 8 | 9" | HC090TG55050-D80 | TN | 800*480 | 211.10*126.50*5.00mm | 198.00*111.7mm | 50pinRGB | 500 | 550 | -20~70℃ | -30~80℃ |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
