3.54-inch Round LCD panel with 1000nits Brightness and 40pinSPI RGB Interface
Product Description:
HC035IXA0040-G10 is a 3.54-inch racket shaped LCD display module whose irregular shape can satisfy the users’ special requirements. Equipped with the IPS display mode, it brings the wide viewing angles that can ensure users to enjoy a super visual experience. This module possesses the resolution of 800*640 pixels, which presents realistic color and clear details for users. Embedded within a compact frame of 97.6*83.79*4.0mm, this module provides a rich active viewing area of 90.0*72.0mm. With the splendid viewing angle of 85/85/85/85(L/R/T/B) and a luminous brightness level of 1000nits combined together, the image of this display can be viewed clearly from multiple angles and readable under sunlight. This module is optimized for efficient data transmission with its 40pinSPI and RGB interfaces. The HC035IXA0040-G10 exemplifies the potent combination of practical design and innovation, which involves it in smart gadgets, control knob and humanoid robot, etc. fields to achieve an excellent visual interaction.
General Specification:
| P/N | HC035IXA0040-G10 |
| Size | 3.54 inch |
| Display mode | Normally Black |
| Resolution | 800*640 |
| Outline Dimension(mm) | 97.6(W)*83.79(H)*4.0(D)mm |
| Active Area(mm) | 90.0(H)*72.0(W)mm |
| Brightness(cd/m²) | 1000 |
| Viewing Angle(L/R/T/B) | 85/85/85/85 |
| Interface | 40pinSPI+RGB |
| Driver IC | ST5892 |
| Operation Temperature | -30~80℃ |
| Storge Temperature | -40~90℃ |
| Aspect ratio | 5:4 |
| Contrast ratio | 1000 |
| Application | Smart gadgets, Control knob,Humanoid robot |
Product drawings:

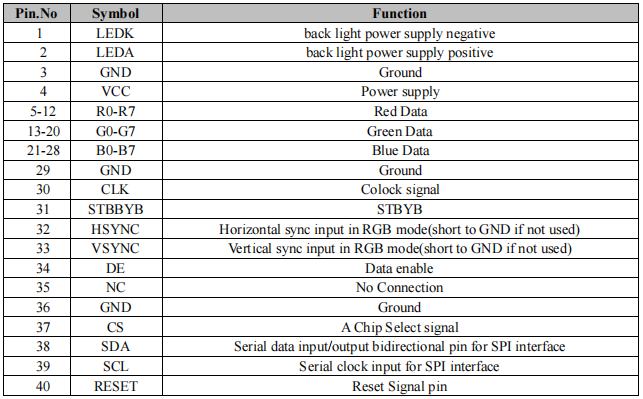

Pin assignment:
Round lcd display series
| Round LCD Display Sizes |
| Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc. |
| No. | Size | Part No. | LCD type | Resolution | Outline dimension | Active area | Interface | Contrast ratio | Brightness | Operation temperature | Storage temperature |
| 1 | 1.8" | HC018IX20020-F63 | IPS | 360*360 | 48.08*49.95*1.96mm | φ45.68mm | 30pin MIPI | 1200 | 250 | -20~70℃ | -30~80℃ |
| 2 | 2.1" | HCCH210WV01A | IPS | 480*480 | 56.18*59.71*2.3mm | φ53.28mm | 40pinSPI+RGB | 1000 | 250 | -20~70℃ | -30~80℃ |
| 3 | 3.5" | HC035IXA0040-G10 | IPS | 800*640 | 97.6*83.79*4.0mm | 90.0*72.0mm | 40pinSPI+RGB | 1200 | 1000 | -30~80℃ | -40~90℃ |
| 4 | 3.5" | HC035IXA0040-F13 | IPS | 800*640 | 97.6*83.79*4.0mm | 90.0*72.0mm | 40pinSPI+RGB | 1200 | 1000 | -20~70℃ | -30~80℃ |
| 5 | 3.5" | HC035IXA0077-G82 | IPS | 720*670 | 98.88*94.12*7.75mm | 89.74*83.51mm | 40pin RGB | 1200 | 1000 | -30~80℃ | -30~80℃ |
| 6 | 4" | HC040IXA4077-F34 | IPS | 720*720 | 110*112.49*7.7mm | φ101.52mm | 40pin MIPI | 1000 | 1400 | -30~85℃ | -30-85℃ |
| 7 | 4" | HC040IXA4077-F35 | IPS | 720*720 | 110*112.49*7.7mm | φ101.52mm | 40pinLVDS | 1200 | 1000 | -30~80℃ | -30-85℃ |
Backlight Driving Conditions:
| Item | Symbol | MIN | TYP | MAX | UNIT | Test Condition |
| Voltage for LED backlight | Vf | - | 18 | - | V | If=180mA |
| Current for LED backlight | If | - | 180 | - | mA | - |
| LED life time | - | 25000 | - | - | hrs | If=180mA |
Customization:
FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
